ASP.NET Core Middleware Order: Fix Pipeline Issues and Debug Execution Flow

The Hidden Culprit Behind Mysterious Pipeline Failures

Picture this: your ASP.NET Core API works perfectly in development, but authentication randomly fails in production. CORS headers appear inconsistently. Some endpoints return 404s that should work. The logs show everything should be working correctly.

After hours of debugging, you discover the issue isn’t in your business logic, it’s in your middleware registration order. One misplaced line in Program.cs broke your entire request pipeline.

This scenario plays out more often than you’d think. Middleware order in ASP.NET Core isn’t just a best practice, it’s critical to your application’s functionality. When middleware executes in the wrong sequence, you get unpredictable behavior that’s difficult to diagnose.

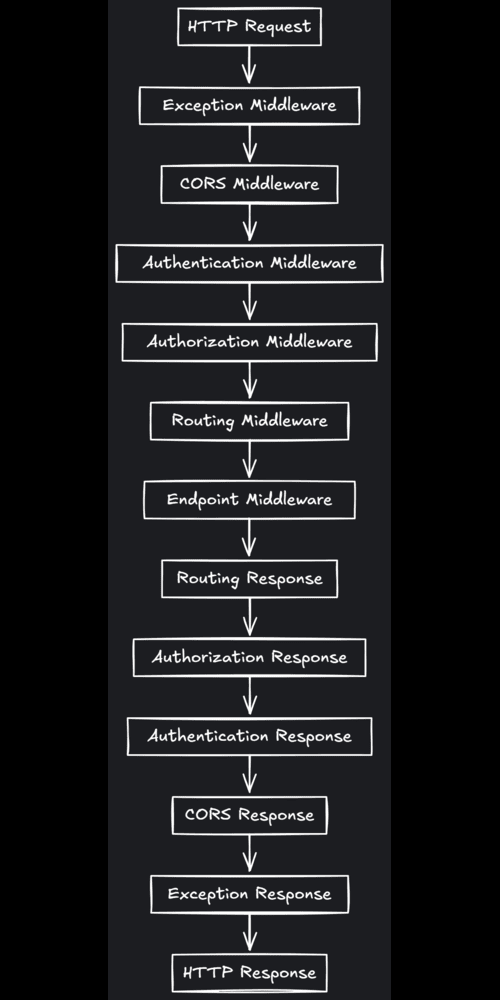

Understanding the ASP.NET Core Pipeline Flow

ASP.NET Core processes every HTTP request through a middleware pipeline. Think of it as a series of tubes where each middleware component can examine, modify, or short-circuit the request before passing it to the next component.

The key insight: middleware wraps around each other like Russian nesting dolls. The first middleware registered runs first on the way in and last on the way out. This creates a request-response flow that looks like this:

Each middleware component has the power to modify the request going down the pipeline and modify the response coming back up. This dual nature is why order matters so much.

Real-World Scenario: When Middleware Order Breaks Everything

Let me share a production incident that perfectly illustrates why middleware order matters. Our team was building an e-commerce API with JWT authentication, CORS support for our React frontend, and comprehensive logging.

Everything worked flawlessly in development. But after deploying to production, we started seeing these issues:

The symptoms were baffling: Users couldn’t log in from the web app due to CORS errors, but Postman requests worked fine. Some authenticated endpoints returned 401 errors randomly. Our custom logging middleware wasn’t capturing authentication failures.

Here’s the problematic middleware configuration that caused all these issues:

// Program.cs - WRONG ORDER
var builder = WebApplication.CreateBuilder(args);
var app = builder.Build();

// This order caused production issues
app.UseRouting(); // Routing first - WRONG!
app.UseAuthentication(); // Auth after routing - WRONG!
app.UseCors("AllowReactApp"); // CORS after auth - WRONG!
app.UseMiddleware<RequestLoggingMiddleware>(); // Logging late - WRONG!
app.UseHttpsRedirection(); // HTTPS redirect after everything - WRONG!

app.MapControllers();
app.Run();

Why this configuration failed:

The routing middleware executed before authentication, so protected routes were being matched and processed without checking if the user was authenticated.

CORS middleware ran after authentication, which meant preflight requests were failing because they couldn’t pass authentication checks. Our logging middleware was so late in the pipeline that it missed critical early-stage failures.

The Correct Middleware Order

Here’s the corrected configuration that resolved all our production issues:

// Program.cs - CORRECT ORDER
var builder = WebApplication.CreateBuilder(args);
var app = builder.Build();

// Exception handling comes first to catch all errors
app.UseExceptionHandler("/Error");

// HTTPS redirection early in pipeline
app.UseHttpsRedirection();

// Custom logging to capture all requests
app.UseMiddleware<RequestLoggingMiddleware>();

// CORS before authentication for preflight requests
app.UseCors("AllowReactApp");

// Authentication before authorization
app.UseAuthentication();
app.UseAuthorization();

// Routing after security middleware
app.UseRouting();

// Endpoints last
app.MapControllers();
app.Run();

Why this order works:

Exception handling catches errors from any downstream middleware. HTTPS redirection happens early to ensure secure communication.

CORS runs before authentication so preflight requests don’t need authentication.

Authentication establishes identity before authorization checks permissions. Routing happens after security checks to ensure only authenticated requests reach protected endpoints.

Building Custom Logging Middleware for Pipeline Debugging

When debugging middleware issues, visibility into the pipeline flow is crucial. Here’s a custom logging middleware that helped us diagnose our production problems:

public class RequestLoggingMiddleware
{
    private readonly RequestDelegate _next;
    private readonly ILogger<RequestLoggingMiddleware> _logger;

    public RequestLoggingMiddleware(RequestDelegate next, ILogger<RequestLoggingMiddleware> logger)
    {
        _next = next;
        _logger = logger;
    }

    public async Task InvokeAsync(HttpContext context)
    {
        // Log incoming request details
        var requestId = Guid.NewGuid().ToString("N")[..8];
        var request = context.Request;

        _logger.LogInformation(
            "[{RequestId}] Incoming: {Method} {Path} from {IP} | User: {User}",
            requestId,
            request.Method,
            request.Path,
            context.Connection.RemoteIpAddress,
            context.User.Identity?.Name ?? "Anonymous"
        );

        // Capture response details
        var originalBodyStream = context.Response.Body;
        using var responseBody = new MemoryStream();
        context.Response.Body = responseBody;

        try
        {
            // Continue down the pipeline
            await _next(context);
        }
        catch (Exception ex)
        {
            _logger.LogError(ex,
                "[{RequestId}] Exception in pipeline: {Message}",
                requestId, ex.Message);
            throw; // Re-throw to let exception middleware handle it
        }
        finally
        {
            // Log response details
            _logger.LogInformation(
                "[{RequestId}] Outgoing: {StatusCode} | Size: {Size} bytes | Duration: {Duration}ms",
                requestId,
                context.Response.StatusCode,
                context.Response.ContentLength ?? responseBody.Length,
                // Add timing logic here if needed
                0
            );

            // Copy response back to original stream
            responseBody.Seek(0, SeekOrigin.Begin);
            await responseBody.CopyToAsync(originalBodyStream);
        }
    }
}

This middleware wraps around the entire pipeline and logs both incoming requests and outgoing responses. The request ID helps correlate logs when multiple requests are processing simultaneously.

Using Built-in Tools for Middleware Analysis

ASP.NET Core provides several built-in tools to help debug middleware issues. Here’s how to configure them:

Microsoft.AspNetCore.MiddlewareAnalysis

This package provides detailed insights into middleware execution:

// Add to your project
// <PackageReference Include="Microsoft.AspNetCore.MiddlewareAnalysis" Version="8.0.0" />

var builder = WebApplication.CreateBuilder(args);

// Enable middleware analysis in development
if (builder.Environment.IsDevelopment())
{
    builder.Services.AddMiddlewareAnalysis();
}

var app = builder.Build();

HTTP Request Logging

For detailed HTTP request/response logging:

var builder = WebApplication.CreateBuilder(args);

// Configure HTTP logging
builder.Services.AddHttpLogging(options =>
{
    options.LoggingFields = HttpLoggingFields.RequestPropertiesAndHeaders |
                           HttpLoggingFields.ResponsePropertiesAndHeaders |
                           HttpLoggingFields.RequestBody |
                           HttpLoggingFields.ResponseBody;
    options.RequestBodyLogLimit = 4096;
    options.ResponseBodyLogLimit = 4096;
});

var app = builder.Build();

// Enable HTTP logging middleware
app.UseHttpLogging();

Developer Exception Page

The developer exception page shows detailed pipeline information when exceptions occur:

if (app.Environment.IsDevelopment())
{
    app.UseDeveloperExceptionPage();
}
else
{
    app.UseExceptionHandler("/Error");
}

Common Middleware Ordering Mistakes

Based on real production issues I’ve encountered, here are the most common middleware ordering mistakes and their consequences:

Debugging Strategies for Middleware Issues

When you suspect middleware ordering problems, follow this systematic approach:

Start with logging. Add the custom logging middleware early in your pipeline to see exactly which middleware is executing and in what order. Look for patterns in the logs that indicate where requests are failing or being short-circuited.

Use conditional middleware. Temporarily wrap suspicious middleware in environment checks to isolate the problem:

if (app.Environment.IsDevelopment())
{
    app.UseMiddleware<SuspiciousMiddleware>();
}

Test with simple endpoints. Create a minimal controller action that just returns “OK” and trace how it flows through your pipeline. This eliminates business logic as a variable.

Check for early termination. Some middleware components can terminate the pipeline early. Make sure you understand which middleware might call context.Response.WriteAsync() or return without calling next().

Performance Considerations in Middleware Ordering

Middleware order doesn’t just affect functionality, it impacts performance too. Place expensive middleware after cheap filters whenever possible.

For example, if you have custom authorization logic that hits a database, place it after built-in authentication middleware that can quickly reject invalid tokens. This prevents unnecessary database calls for obviously invalid requests.

Static file middleware should typically come early in the pipeline (after security middleware) so static assets don’t go through unnecessary authentication or routing logic.

Monitoring Middleware Health in Production

Don’t wait for users to report problems. Set up proactive monitoring for middleware-related issues:

public class HealthCheckMiddleware
{
    private readonly RequestDelegate _next;
    private readonly ILogger<HealthCheckMiddleware> _logger;

    public HealthCheckMiddleware(RequestDelegate next, ILogger<HealthCheckMiddleware> logger)
    {
        _next = next;
        _logger = logger;
    }

    public async Task InvokeAsync(HttpContext context)
    {
        var stopwatch = Stopwatch.StartNew();

        try
        {
            await _next(context);
        }
        finally
        {
            stopwatch.Stop();

            // Log slow requests
            if (stopwatch.ElapsedMilliseconds > 1000)
            {
                _logger.LogWarning(
                    "Slow request: {Method} {Path} took {Duration}ms",
                    context.Request.Method,
                    context.Request.Path,
                    stopwatch.ElapsedMilliseconds
                );
            }
        }
    }
}

Key Takeaways for Middleware Success

Getting middleware order right is crucial for ASP.NET Core applications. The order you register middleware in Program.cs directly determines how your application handles requests and responses.

Start with security middleware like HTTPS redirection and CORS, then add authentication and authorization, followed by routing and endpoints. Place logging and monitoring middleware early to capture all pipeline activity.

When debugging middleware issues, use custom logging middleware to trace execution flow, leverage built-in analysis tools, and test with simplified scenarios to isolate problems.

Remember that middleware wraps around each other, the first registered runs first on requests and last on responses. This pattern affects everything from error handling to performance optimization.

Master your middleware pipeline, and you’ll build more reliable, maintainable ASP.NET Core applications. The time invested in understanding middleware order pays dividends in reduced debugging sessions and fewer production incidents.

Frequently Asked Questions
